Packaging Details
1.Fumigation of wood drum, plywooden drum or wooden drum
2.carton box
3.customized
Port: Shenzhen
Description:

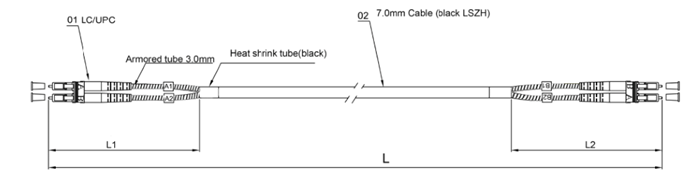

LC to LC Duplex Outdoor CPRI Optic Fiber Patch Cable OS1 / OS2 / OM1 / OM2 /OM3 Patch Cord LSZH
Cable Parameters
| Fiber Count | Cable Dimension mm | Cable Weight kg/km | Tensile (N) | Crush (N/100mm) | Min. Bend Radius (mm) | Range of Temperature |
| Long Term | Short Term | Long Term | Short Term | Dynamic | Static |
| 2 | 7.0 | 42 | 200 | 400 | 300 | 1000 | 20D | 10D | -20-+70 |
| Note: 1. All the values in the table, which are for reference only, are subject to change without notice; 2. The cable dimension and weight are subject to the simplex cable of 2.0/1.6 outer diameter; 3. D is outer diameter of the round cable; |
Optical Specifications
| ITEM | PARAMETER |
| Connector type | LC,SC,FC,ST,E2000 |
| Insertion Loss | <0.3dB |
| Return Loss | SM>50dB,APC>60dB,MM>35dB |
| Repeatability | <=0.1 |
| Interchangeability | <=0.2dB |
| Durability | <=0.2dB |
| Fiber Length | 1m, 2m….. any length optional. |
| Length and tolerance | 10cm |
| Operating Temperature | -20C ~ +85C |
| Storage Temperature | -20C ~ +85C |
Features
Open bulkhead for easy access to SFP
Positive mechanical feedback to operator when fully mated
One-hand mating
Plug has tolerance free design, fully free floating on Z-axis
No Cable buckling during or after installation
Cost effective metal die cast bulkhead
Field installable version available
Water proof, dust proof and corrosion resistant
Good mechanical and environmental characteristics;
Flame retardant characteristics meet the requirements of relevant standards;
The mechanical characteristics of jacket meet the requirements of relevant standards;
Soft, flexible, water blocked, UV resistant, easy to lay and splice, and with big capacity data transmission;
Meet various requirements of market and clients
Bulkhead cutout allows for removal of transceiver through the bulkhead (no need to open PRH for transceiver replacement)
Robust bayonet locking for easy, fast, and secure mating
Related products
Application:
1. CATV
2. Active dvice termination
3. Telecommunication networks
4. Metro
5. Local Area Networks(LANs)
6. Data Processing networks
7. Test Equipment
Packaging
This easily taken and well-protected fiber optical cable package has been labelled and marked by OMC as de-
fault .Standard carton size : 34*22*15 cm; 44*34*24 cm ; 54*39*34 cm . Which carton to be used depends on goods
Qty . Packing can be customized.
Company Information
OMC industry co., limited, which was founded by an expert team, has been exporting FTTX passive products since 2007. We focus on providing innovative and integrated FTTX solutions for a variety of applications/Networks. Our capabilities include product/solution design, development, enhancement and integration. Our products are among the highest performing in the industry and truly represent the best values in the industry. We also offer training, pre and post-sales support. We help you select the right products for your Optical network's needs.
High Quality Fibre Optic Cable Guarantee
Comprehensive performance testing makes sure the cable work more securely and data transmission more reliable and stable in your network.
FAQ:
1. Are you the real factory?
Yes,we are the real factory more than 10 years
2. What is your main products?
Outdoor fiber optic cables; indoor fiber optic cables;FTTH Drop cables;
Indoor armored patch cords fiber cable; Optical patch cords SC/LC/FC/ST; MTP/MPO optical patch cord.
3. Do you have certificate for raw material?
We build long-term relationship cooperation with qualified ISO9001, ROHS raw material suppliers.
4. What is your delivery time?
Within 24 hours for normal kinds of fiber optic cable;
3~5 days for fiber optic patch cords with 10000 connectors.
5. MOQ: what is your minimum quantity?
MOQ for fiber optic cables: 1KM
There is no MOQ required for fiber optic patch cords,as there’s stock for normal kinds.
6. Do you have distributor in other country or domestic?
Until now, we sell our products to customers directly. And factory price could be offered.
7. Payment
For large orders: T/T, L/C
For small orders: T/T,Western Union and Paypal are acceptable.
