24F micro fanout Fiber Optic Patch Cord LC APC - LC APC SM OS2 main cable 3.0mm OD fanout 2.0mm Cable OD IEC Grade B1
This Patch cord is pre-terminated with a OD of 3.0mm 24F micro-fiber cable. LC/APC 2.0 connector assembled at each ending. The fanout cable OD is 2.0mm. A fanout kits will be installed at the junction of main cable and fanout cable. This new design cable is with small OD but comes with 24F , Save your Optical Cabling space , Lower down cabling difficult , save time and cost.
The 9/125μm OS2 single mode bend insensitive fiber optic cable is less attenuation when bent or twisted compared with traditional optical fiber cables and this will make the installation and maintenance of the fiber optic cables more efficient. It can also save more space for your high density cabling in data centers, enterprise networks, telecom room, server farms, cloud storage networks, and any places fiber patch cables are needed.
This 9/125 OS2 single mode fiber optic cable is ideal for connecting 1G/10G/40G/100G/400G Ethernet connections. It can transport data for up to 10km at 1310nm, or up to 40km at 1550nm.
Products details.
High Quality LC APC Connector meet and Compatible with many International Standard
LC: TIA/EIA, FOCIS10, GR-326 EIA/TIA-604-10, IEC61754-20 and JIS C5973.
High quality SM Ceramic ferrule, Good concentricity<0.3um
Bend insensitive 657A1 Fiber, 12Fibers in each . Offer best protection for the 250um bare fiber.
LSZH jacket, Meet CPR demand
| Fiber Count | OD(mm) | Minimum allowable Tensile Strength (N) | minimum allowable Crush Load(N/100mm) | Minimum Bending Radius(MM) |
| 24 | 3.0±0.15 | Short-term: 180； Long-term: 90 | Short-term: 500； Long-term: 150 | Static:10D Dynamic:20D |
Optical performace
| Connector Type | LC to LC | Polish Type | APC to APC |
| Fiber Mode | OS2 9/125μm | Wavelength | 1310/1550nm |
| Insertion Loss | ≤0.12dB(IEC grade B1) | Return Loss | ≥50dB |
| Fiber Grade | G.657.A1 | Minimum Bend Radius | 10mm |
| Attenuation at 1310 nm | 0.36 dB/km | Attenuation at 1550 nm | 0.22 dB/km |
| Fiber Count | 24 | Cable Diameter | 3.0mm |
| Cable Jacket | PVC/LSZH | Polarity | A(Tx) to B(Rx) |
| Operating Temperature | -20~70°C | Storage Temperature | -40~80°C |
Quality features:
YOFC G.657.A1 bend insensitive fiber
10.0mm minimum bend radius
Insertion loss and return loss testing
End-face inspection
3D interferometer test
Bend Insensitive Fiber Optic Cable Structure
A unique refractive trench with low refractive index glass layer in BIF, which reduces in light dispersion upon twisting and bending, ensuring network transmission stably and fast.
End-face Quality (SM)
SM UPC
| Zone | Range (μm) | Scratches | Defects | Reference |
| A: Core | 0 to 25 | None | None | IEC 61300-3-35:2015 |
| B: Cladding | 25 to 115 | None | None |
| C: Adhesive | 115 to 135 | None | None |
| D: Contact | 135 to 250 | None | None |
| E: Rest of ferrule | None | None |
Length Tolerance
| Overall Length(L)(m) | length of tolerance(cm) |
| 0<L<1 | +5/-0 |
| 1<L<10 | +10/-0 |
| 10<L<40 | +15/-0 |
| 40<L | +0.5% x L/-0
|
Related products
High Quality Fibre Optic Cable Guarantee
Comprehensive performance testing makes sure the cable work more securely and data transmission more reliable and stable in your network.
Packaging
This easily taken and well-protected fiber optical cable package has been labelled and marked by OMC as de-
fault .Standard carton size : 34*22*15 cm; 44*34*24 cm ; 54*39*34 cm . Which carton to be used depends on goods
Qty . Packing can be customized.
Certification:
Our products are confirmed by these certifications
Company Information:

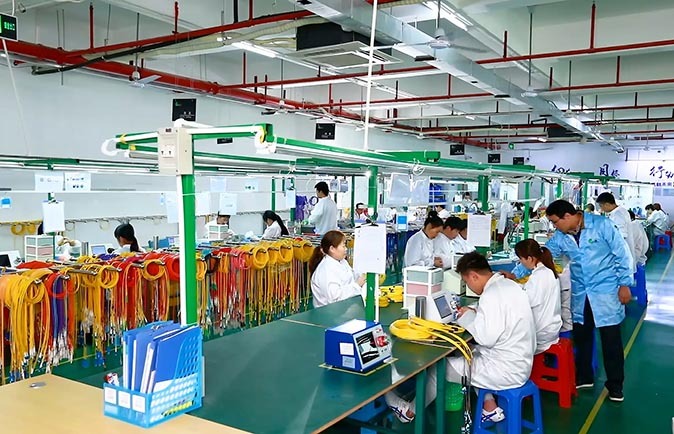

OMC industry co., limited, which was founded by an expert team, has been exporting FTTX passive products since 2007. We focus on providing innovative and integrated FTTX solutions for a variety of applications/Networks. Our capabilities include product/solution design, development, enhancement and integration. Our products are among the highest performing in the industry and truly represent the best values in the industry. We also offer training, pre and post-sales support. We help you select the right products for your Optical network's needs.
FAQ:
1. Are you the real factory?
Yes,we are the real factory more than 10 years
2. What is your main products?
Outdoor fiber optic cables; indoor fiber optic cables;FTTH Drop cables;
Indoor armored patch cords fiber cable; Optical patch cords SC/LC/FC/ST; MTP/MPO optical patch cord.
3. Do you have certificate for raw material?
We build long-term relationship cooperation with qualified ISO9001, ROHS raw material suppliers.
4. What is your delivery time?
Within 24 hours for normal kinds of fiber optic cable;
3~5 days for fiber optic patch cords with 10000 connectors.
5. MOQ: what is your minimum quantity?
MOQ for fiber optic cables: 1KM
There is no MOQ required for fiber optic patch cords,as there’s stock for normal kinds.
6. Do you have distributor in other country or domestic?
Until now, we sell our products to customers directly. And factory price could be offered.
7. Payment
For large orders: T/T, L/C
For small orders: T/T,Western Union and Paypal are acceptable.
