VF45 - LC Fiber Patch Cord MM OM1 62.5 / 125 2.0mm Duplex with GGP Fiber cable PVC/LSZH Jacket

Name: VF45 LC Fiber Patch Cord MM OM1 625 125 20mm Duplex with GGP Fiber cable PVCLSZH Jacket
Brand: OEM or OMC
Price: 1 USD

Quality VF45 - LC Fiber Patch Cord MM OM1 62.5 / 125 2.0mm Duplex with GGP Fiber cable PVC/LSZH Jacket wholesale

Brand Name : OEM or OMC

Model Number : VF45 to LC 50/125 OM1 Duplex 2.0mm

Certification : IEC-61754-7; JIS C5982; TIA-604-5(FOCIS5); Telcordia GR-1435-CORE

Place of Origin : China

MOQ : 5

Price : Negotiable

Payment Terms : Western Union, T/T, Paypal

Supply Ability : 100000pcs per month

Delivery Time : 3-7days

Packaging Details : One piece in a plastic bag, several pieces in the carton of 54*39*35cm carton

Product name : 2.0mm VF45-LC MM OM1 Optical Fiber Patch Cord

Insertion loss : ≤0.3dB(Low loss)

Return loss : ≥35dB

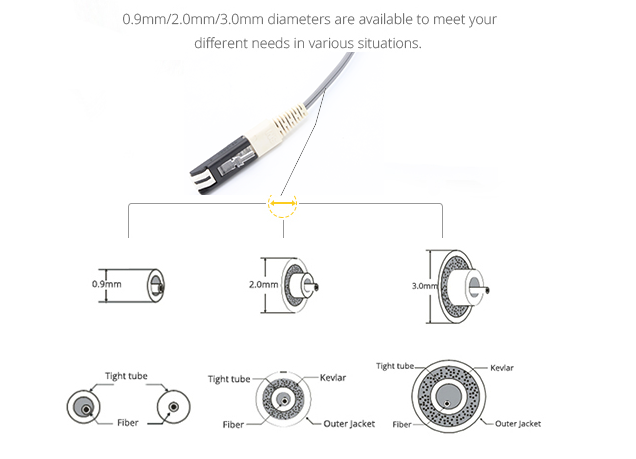

Cable OD : 2.0mm

Fiber Type : Multiple Mode 50/125

Material : PVC/LSZH Jacket

Polish Type : PC

Wavelength : 850nm

Storage Temperature : -45~85°C

Contact Now

VF45 - LC Fiber Patch Cord MM OM1 62.5 / 125 2.0mm Duplex with GGP Fiber cable PVC/LSZH Jacket

All VF45 patch cords are constructed with the innovative 3M "GGP" high-strength coated optical fiber, providing enhanced durability under tight bend radius conditions.

VF-45 Fiber Optic Patch Cord is designed by 3M and features plug and jack design without the need to adapters. VF-45 plug is inserted into the socket (jack) at a 45-degree angle, pressing a pair of fibers into V-grooves inside the socket. This design of VF-45 Connector eliminates the need for expensive ferrules thus reduce connector costs.

OMC’s VF-45 patch cords are provided in a variety of lengths and are also available in hybrid LC,SC,FC,ST,MTRJ configurations.

VF45 patch cord’s Specification:

Item	Parameter
	Single-mode	Multi-mode
Insertion Loss	≤0.75dB
Return Loss	≥50 dB (SM PC),≥35 dB (MM PC)
Repeatability	≤0.1dB
Durability	0.2dB Max. 1000 mattings
Operating Temperature	-40℃~+85℃
Storage Temperature	-40℃~+85℃

Customized Jacket Material and Cable Diameter

High Quality Fibre Optic Cable Guarantee

Comprehensive performance testing makes sure the cable work more securely and data transmission more reliable and stable in your network.

VF45 - LC Fiber Patch Cord MM OM1 62.5 / 125 2.0mm Duplex with GGP Fiber cable PVC/LSZH Jacket

Packaging & Delivery:

Packaging Details

1.Fumigation of wood drum, plywooden drum or wooden drum
2.carton box
3.customized

Port: Shenzhen

Premium Performance Fiber Optic Cable

Fiber optic cables are used for connections to data center, CATV, fiber test equipment, LAN, telecommunication networks, FTTx, communication rooms, fiber optic communication system, defense combat readiness, etc.

VF45 - LC Fiber Patch Cord MM OM1 62.5 / 125 2.0mm Duplex with GGP Fiber cable PVC/LSZH Jacket

Related products:

48F MPO-MPO Trunk Cables

VF45 - LC Fiber Patch Cord MM OM1 62.5 / 125 2.0mm Duplex with GGP Fiber cable PVC/LSZH Jacket

4-48F Breakout –2.0mm tail Fiber Patch Cables

VF45 - LC Fiber Patch Cord MM OM1 62.5 / 125 2.0mm Duplex with GGP Fiber cable PVC/LSZH Jacket

Zipcord Duplex armored patch cord

Packaging

This easily taken and well-protected fiber patch cable package has been labelled and marked by OMC as default
.Standard carton size : 34*22*15 cm; 44*34*24 cm ; 54*39*34 cm . Which carton to be used depends on goods
Qty . Packing can be customized.

VF45 - LC Fiber Patch Cord MM OM1 62.5 / 125 2.0mm Duplex with GGP Fiber cable PVC/LSZH Jacket

1. self-seal PE bag 2. Bubble bag 3. Paper carton 4 .fumig-free Pallet

Company Information:

OMC industry co., limited, which was founded by an expert team, has been exporting FTTX passive products since 2007. We focus on providing innovative and integrated FTTX solutions for a variety of applications/Networks. Our capabilities include product/solution design, development, enhancement and integration. Our products are among the highest performing in the industry and truly represent the best values in the industry. We also offer training, pre and post-sales support. We help you select the right products for your Optical network's needs.

VF45 - LC Fiber Patch Cord MM OM1 62.5 / 125 2.0mm Duplex with GGP Fiber cable PVC/LSZH Jacket

FAQ:

1. Are you the real factory?

Yes,we are the real factory more than 10 years

2. What is your main products?

Outdoor fiber optic cables; indoor fiber optic cables;FTTH Drop cables;

Indoor armored patch cords fiber cable; Optical patch cords SC/LC/FC/ST; MTP/MPO optical patch cord.

3. Do you have certificate for raw material?

We build long-term relationship cooperation with qualified ISO9001, ROHS raw material suppliers.

4. What is your delivery time?

Within 24 hours for normal kinds of fiber optic cable;

3~5 days for fiber optic patch cords with 10000 connectors.

5. MOQ: what is your minimum quantity?

MOQ for fiber optic cables: 1KM

There is no MOQ required for fiber optic patch cords,as there’s stock for normal kinds.

6. Do you have distributor in other country or domestic?

Until now, we sell our products to customers directly. And factory price could be offered.

7. Payment

For large orders: T/T, L/C

For small orders: T/T,Western Union and Paypal are acceptable
